Ideal for ultra small-scale wastewater treatment plants
World's smallest sludge dewatering press

Water and sludge treatment products

VOLUTE™ Dewatering Press
ES-051

Suitable for sludge treatment in septic tanks as well as very small-scale sludge treatment in industrial laundry, vehicle-maintenance factories, and others.

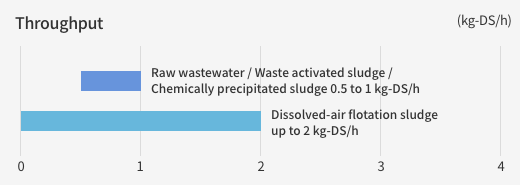

製品紹介画像

ADVANTAGES

  • No clogging even with oily sludge
    No clogging even with oily sludge
  • No pre-thickening required, TS: 0.2% or more
    No pre-thickening required, TS: 0.2% or more
  • Applicable for various applications
    Applicable for various applications
  • High solid capture rate
    High solid capture rate
  • Water-saving & Power-saving
    Water-saving & Power-saving
  • Low noise and low vibration
    Low noise and low vibration
  • Easy operation and easy maintenance
    Easy operation and easy maintenance
  • Ultra-small footprint
    Ultra-small footprint

No clogging even with oily sludge

The machine has a filter element that consists of alternating layers of rings fixed at four locations (fixed rings) and vertically movable rings (moving rings) maintaining a gap between them, and a single screw that is threaded through the filter element to transfer and compact the sludge.
A clog-free self-cleaning mechanism is achieved since the screw rotates at a constant speed in contact with the floating ring, driving the floating ring to clean the filter element gap.
The machine delivers stable dewatering performance even with oily sludge.
The amount of cleaning water for preventing clogging is very small compared to other types of dewatering machines.

No pre-thickening required

This machine has an integrated structure in which two processes, thickening and dewatering, are handled by a single filter element, allowing the user to directly charge low-concentration sludge having a TS of about 0.2% without providing a thickening system in the preceding stage.
This not only reduces the construction and operating costs for the thickening and storage systems but also reduces odor because aerobic sludge is dewatered.
The machine can also efficiently capture phosphorus in waste activated sludge to the dewatered cake side, reducing the load caused by phosphorus returning to wastewater treatment.

Conventional sludge treatment process
Aeration tank direct dewatering

Ultra-small footprint

Ultra-compact body: 1095 mm long, 705 mm wide, 760 mm high.
This Press is used in various small-scale wastewater treatment facilities and scenes such as septic tank sludge treatment, waste treatment plants, industrial laundry, vehicle-maintenance factories, auto parts factories, cosmetics manufacturing factories, and domestic wastewater treatment in buildings.

PROCESS FLOW

*The same process as the FS series.
  1. 01

    Flow Control Tank

    Sludge feed is regulated with the overflow pipe, returning excess volume to the sludge storage tank.
  2. 02

    Flocculation Tank

    Polymer and sludge are stirred and mixed, forming flocs suitable for VOLUTE™.
  3. 03

    Cylinder Unit

    Sludge is instantly thickened in the thickening zone of the cylinder, and then the inner pressure increased at the dewatering zone helps sludge being dewatered well.
  4. 04

    Discharge Outlet for Dewatered Cake

    Further pressure is applied from the outlet side with the end plate, discharging dewatered cake with 20% (+/-5%) dry solids content.

RENTAL

Rent a Sludge Dewatering Presses

You may wonder, “Can the machine dewater the sludge as desired?” or “Is it difficult to operate the machine?”
In addition to eliminating concerns before purchase, you can also use our products as a replacement machine during the service period of an existing dewatering machine or during the construction period of a wastewater treatment facility.

Flow for Product Installation

流れ
Feel free to contact us. After collecting information about your treatment process, sludge volume, operating hours, and other conditions, we will select the most suitable model for your sludge and your concerns. During jar test, we will simulate the amount of chemicals to be dosed, the estimated water content of the dewatered cake, etc. Upon request, a pilot test can be performed at your wastewater treatment plant (for a fee). After determining the specifications and ancillary equipment, we will start producing the equipment. Our sales representative or service engineer will perform operational adjustments at your wastewater treatment plant and you will check how to operate the system before we hand over the equipment.
