Specifications List

* Please note that specifications may be changed without notice.

Sludge Dewatering Press

Sludge Dewatering Press (offered only in Japan)

Mobile Dewatering Truck (offered only in Japan)

Sludge Thickener

To inquiry form

Sludge Dewatering Press

GS series

Raw Wastewater /
Waste Activated Sludge /
Chemically Precipitated Sludge		 Dissolved-air
Flotation Sludge
Sludge
Concentration
(TS)		 0.2% 1.0% 2.0%
GS-101 up to 3kg‐DS/h
(up to 1.5m3/h )		 up to 4.5kg‐DS/h
(up to 0.45m3/h )		 up to 7.5kg‐DS/h
(up to 0.37m3/h )
GS-131 up to 6kg‐DS/h
(up to 3.0m3/h )		 up to 9kg‐DS/h
(up to 0.9m3/h )		 up to 15kg‐DS/h
(up to 0.75m3/h )
GS-132 up to 12kg‐DS/h
(up to 6.0m3/h )		 up to 18kg‐DS/h
(up to 1.8m3/h )		 up to 30kg‐DS/h
(up to 1.5m3/h )
GS-201 up to 13kg‐DS/h
(up to 6.5m3/h )		 up to 20kg‐DS/h
(up to 2.0m3/h )		 up to 33kg‐DS/h
(up to 1.67m3/h )
GS-202 up to 26kg‐DS/h
(up to 13.0m3/h )		 up to 40kg‐DS/h
(up to 4.0m3/h )		 up to 66kg‐DS/h
(up to 3.3m3/h )
GS-301 up to 30kg‐DS/h
(up to 15.0m3/h )		 up to 45kg‐DS/h
(up to 4.5m3/h )		 up to 75kg‐DS/h
(up to 3.75m3/h )
GS-302 up to 60kg‐DS/h
(up to 30.0m3/h )		 up to 90kg‐DS/h
(up to 9.0m3/h )		 up to 150kg‐DS/h
(up to 7.5m3/h )
GS-351 up to 60kg‐DS/h
(up to 30.0m3/h )		 up to 90kg‐DS/h
(up to 9.0m3/h )		 up to 150kg‐DS/h
(up to 7.5m3/h )
GS-352 up to 120kg‐DS/h
(up to 60.0m3/h )		 up to 180kg‐DS/h
(up to 18.0m3/h )		 up to 300kg‐DS/h
(up to 15.0m3/h )
GS-401 up to 80kg‐DS/h
(up to 40.0m3/h )		 up to 120kg‐DS/h
(up to 12.0m3/h )		 up to 190kg‐DS/h
(up to 9.5m3/h )
GS-402 up to 160kg‐DS/h
(up to 80.0m3/h )		 up to 240kg‐DS/h
(up to 24.0m3/h )		 up to 380kg‐DS/h
(up to 19.0m3/h )
Model Dimensions (mm) Total Power
Consumption (kW)		 Weight (kg)
L W H Empty Operation
GS-101 2045 1236 1440 0.40 344 546
GS-131 2190 1236 1440 0.40 354 556
GS-132 2190 1236 1440 0.50 464 676
GS-201 2581 1236 1440 0.50 514 736
GS-202 3165 1465 1855 1.35 1260 1885
GS-301 3765 1415 1855 1.35 1240 1890
GS-302 3985 1700 1855 1.75 1775 2775
GS-351 4500 1665 2250 2.45 2135 3105
GS-352 5180 1910 2255 5.95 4100 6730
GS-401 5870 1905 2250 4.45 3200 5730
GS-402 6170 2305 2250 5.95 4830 8700

* Throughput above is calculated as approximate and may vary depending on sludge condition. For model selection, please contact us.
* Throughput of each model is based on sludge cake with 20±5% solids content.
* There is no certain upper limitation on inlet sludge concentration, however, the target sludge must be flowable.
* Throughput of DAF Sludge is based on sludge containing much fat, oil, and grease such as meat processing applications etc.

Go to top
To inquiry form

Sludge Dewatering Press

FS Series

Raw Wastewater /
Waste Activated Sludge /
Chemically Precipitated Sludge		 Dissolved-air
Flotation Sludge		 Mixed Raw Sludge
Sludge
Concentration（TS）		 0.2% 1.0% 2.0% 5.0% 3.0%
FS-101 up to 2kg‐DS/h
(up to 1.0m3/h )		 up to 3kg‐DS/h
(up to 0.3m3/h )		 up to 5kg‐DS/h
(up to 0.25m3/h )		 up to 10kg‐DS/h
(up to 0.20m3/h )		 up to 13kg‐DS/h
(up to 0.43m3/h )
FS-131 up to 4kg‐DS/h
(up to 2.0m3/h )		 up to 6kg‐DS/h
(up to 0.6m3/h )		 up to 10kg‐DS/h
(up to 0.5m3/h )		 ～up to 20kg‐DS/h
(up to 0.4m3/h )		 up to 26kg‐DS/h
(up to 0.87m3/h )
FS-132 up to 8kg‐DS/h
(up to 4.0m3/h )		 up to 12kg‐DS/h
(up to 1.2m3/h )		 up to 20kg‐DS/h
(up to 1.0m3/h )		 up to 40kg‐DS/h
(up to 0.8m3/h )		 up to 52kg‐DS/h
(up to .74m3/h )
FS-201 up to 9kg‐DS/h
(up to 4.5m3/h )		 up to 13kg‐DS/h
(up to 1.3m3/h )		 up to 22kg‐DS/h
(up to 1.1m3/h )		 up to 44kg‐DS/h
(up to 0.88m3/h )		 up to 57kg‐DS/h
(up to 1.9m3/h )
FS-202 up to 18kg‐DS/h
(up to 9.0m3/h )		 up to 26kg‐DS/h
(up to 2.6m3/h )		 up to 44kg‐DS/h
(up to 2.2m3/h )		 up to 88kg‐DS/h
(up to 1.76m3/h )		 up to 114kg‐DS/h
(up to 3.8m3/h )
FS-301 up to 20kg‐DS/h
(up to 10.0m3/h )		 up to 30kg‐DS/h
(up to 3.0m3/h )		 up to 50kg‐DS/h
(up to 2.5m3/h )		 up to 100kg‐DS/h
(up to 2.0m3/h )		 up to 130kg‐DS/h
(up to 4.33m3/h )
FS-302 up to 40kg‐DS/h
(up to 20.0m3/h )		 up to 60kg‐DS/h
(up to 6.0m3/h )		 up to 100kg‐DS/h
(up to 5.0m3/h )		 up to 200kg‐DS/h
(up to 4.0m3/h )		 up to 260kg‐DS/h
(up to 8.67m3/h )
FS-351 up to 40kg‐DS/h
(up to 20.0m3/h )		 up to 60kg‐DS/h
(up to 6.0m3/h )		 up to 100kg‐DS/h
(up to 5.0m3/h )		 up to 200kg‐DS/h
(up to 4.0m3/h )		 up to 260kg‐DS/h
(up to 8.67m3/h )
FS-352 up to 80kg‐DS/h
(up to 40.0m3/h )		 up to 120kg‐DS/h
(up to 12.0m3/h )		 up to 200kg‐DS/h
(up to 10.0m3/h )		 up to 400kg‐DS/h
(up to 8.0m3/h )		 up to 520kg‐DS/h
(up to 17.3m3/h )
FS-401 up to 67kg‐DS/h
(up to 33.5m3/h )		 up to 100kg‐DS/h
(up to 10.0m3/h )		 up to 160kg‐DS/h
(up to 8.0m3/h )		 up to 320kg‐DS/h
(up to 6.4m3/h )		 up to 416kg‐DS/h
(up to 13.8m3/h )
FS-402 up to 133kg‐DS/h
up to ～66.5m3/h )		 up to 200kg‐DS/h
(up to 20.0m3/h )		 up to 320kg‐DS/h
(up to 16.0m3/h )		 up to 640kg‐DS/h
(up to 12.8m3/h )		 up to 832kg‐DS/h
(up to 27.7m3/h )
FS-403 up to 200kg‐DS/h
(up to 100.0m3/h )		 up to 300kg‐DS/h
(up to 30.0m3/h )		 up to 480kg‐DS/h
(up to 24.0m3/h )		 up to 960kg‐DS/h
(up to 19.2m3/h )		 up to 1248kg‐DS/h
(up to 41.6m3/h )
FS-404 up to 267kg‐DS/h
(up to 133.5m3/h )		 up to 400kg‐DS/h
(up to 40.0m3/h )		 up to 640kg‐DS/h
(up to 32.0m3/h )		 up to 1280kg‐DS/h
(up to 25.6m3/h )		 up to 1664kg‐DS/h
(up to 55.4m3/h )
Model Dimensions(mm) Total Power
Consumption(kW)		 Weight(kg)
L W H Empty Operation
FS-101 2131 911 1300 0.30 230 360
FS-131 2276 911 1300 0.30 240 370
FS-132 2361 1027 1300 0.40 320 510
FS-201 2806 1034 1450 0.40 430 620
FS-202 2876 1205 1555 1.00 890 1370
FS-301 3395 1150 1825 1.00 910 1325
FS-302 3890 1470 1890 1.40 1510 2270
FS-351 4114 1325 2250 2.10 1800 2550
FS-352 4775 1645 2250 3.95 2780 3960
FS-401 5400 1630 2250 2.45 2190 3440
FS-402 5775 2075 2250 4.90 4050 6200
FS-403 6350 2600 2250 7.45 5990 9990
FS-404 6670 3200 2250 8.95 7750 13700

*Throughput above is calculated as approximate and may vary depending on sludge condition. For model selection, please contact us.
*Throughput of each model is based on sludge cake with 20±5% solids content.
*There is no certain upper limitation on inlet sludge concentration, however, the target sludge must be flowable.
*Throughput of DAF Sludge is based on sludge containing much fat, oil, and grease such as meat processing applications etc.

* Throughput of? Mixed Sludge (Primary Sludge and Waste Activated Sludge) is based on sludge containing 20% fiber (150 micron mesh clearance) against Total Solids.

Specifications shall be changed depending on sludge conditions.

*The above figures are for the models with two chemical inlets. Also, it is possible to provide one chemical inlet models, so please?contact us for details.

Go to top
To inquiry form

Sludge Dewatering Press

EC Series

Raw Wastewater /
Waste Activated Sludge /
Chemically Precipitated Sludge		 Dissolved-air
Flotation Sludge		 Mixed Raw Sludge
Sludge
Concentration
(TS)		 0.2% 1.0% 2.0% 5.0% 3.0%
EC-101 up to 2kg-DS/h
(up to 1.0m3/h)		 up to 3kg-DS/h
(up to 0.3m3/h)		 up to 5kg-DS/h
(up to 0.25m3/h)		 up to 10kg-DS/h
(up to 0.2m3/h)		 up to 13kg-DS/h
(up to 0.43m3/h)
EC-102 up to 4kg-DS/h
(up to 2.0m3/h)		 up to 6kg-DS/h
(up to 0.6m3/h)		 up to 10kg-DS/h
(up to 0.5m3/h)		 up to 20kg-DS/h
(up to 0.4m3/h)		 up to 26kg-DS/h
(up to 0.87m3/h)
EC-131 up to 4kg-DS/h
(up to 2.0m3/h)		 up to 6kg-DS/h
(up to 0.6m3/h)		 up to 10kg-DS/h
(up to 0.5m3/h)		 up to 20kg-DS/h
(up to 0.4m3/h)		 up to 26kg-DS/h
(up to 0.87m3/h)
EC-132 up to 8kg-DS/h
(up to 4.0m3/h)		 up to 12kg-DS/h
(up to 1.2m3/h)		 up to 20kg-DS/h
(up to 1.0m3/h)		 up to 40kg-DS/h
(up to 0.8m3/h)		 up to 52kg-DS/h
(up to 1.73m3/h)
EC-133 up to 12kg-DS/h
(up to 6.0m3/h)		 up to 18kg-DS/h
(up to 1.8m3/h)		 up to 30kg-DS/h
(up to 1.5m3/h)		 up to 60kg-DS/h
(up to 1.2m3/h)		 up to 78kg-DS/h
(up to 2.6m3/h)
EC-202 up to 16kg-DS/h
(up to 8.0m3/h)		 up to 24kg-DS/h
(up to 2.4m3/h)		 up to 40kg-DS/h
(up to 2.0m3/h)		 up to 80kg-DS/h
(up to 1.6m3/h)		 up to 104kg-DS/h
(up to 3.47m3/h)
EC-203 up to 24kg-DS/h
(up to 12m3/h)		 up to 36kg-DS/h
(up to 3.6m3/h)		 up to 60kg-DS/h
(up to 3.0m3/h)		 up to 120kg-DS/h
(up to 2.4m3/h)		 up to 156kg-DS/h
(up to 5.2m3/h)
EC-204 up to 32kg-DS/h
(up to 16m3/h)		 up to 48kg-DS/h
(up to 4.8m3/h)		 up to 80kg-DS/h
(up to 4.0m3/h)		 up to 160kg-DS/h
(up to 3.2m3/h)		 up to 208kg-DS/h
(up to 6.93m3/h)
EC-205 up to 40kg-DS/h
(up to 20m3/h)		 up to 60kg-DS/h
(up to 6.0m3/h)		 up to 100kg-DS/h
(up to 5.0m3/h)		 up to 200kg-DS/h
(up to 4.0m3/h)		 up to 260kg-DS/h
(up to 8.67m3/h)
Model Dimensions (mm) Total Power
Consumption (kW)		 Weight (kg)
L W H Empty Operation
EC-101 1757 700 1705 0.7 270 670
EC-102 1757 900 1705 0.8 320 820
EC-131 1757 700 1705 0.7 285 685
EC-132 1757 900 1705 0.8 350 850
EC-133 1847 1100 1705 0.9 420 1070
EC-202 2485 1180 1728 1.45 870 1820
EC-203 2591 1470 1728 1.8 1075 2375
EC-204 2665 1780 1728 2.7 1470 3120
EC-205 2741 2085 1728 2.9 1820 3720

* Throughput above is calculated as approximate and may vary depending on sludge condition.For model selection, please contact us.

* Throughput of each model is based on sludge cake with 20±5% solids content.

* There is no certain upper limitation on inlet sludge concentration, however, the target sludge must be flowable.

* Throughput of DAF Sludge is based on sludge containing much fat, oil, and grease such as meat processing applications etc.

* Throughput of? Mixed Sludge (Primary Sludge and Waste Activated Sludge) is based on sludge containing 20% fiber (150 micron mesh clearance) against Total Solids.

Specifications shall be changed depending on sludge conditions.

Go to top
To inquiry form

Sludge Dewatering Press

AW Series

[offered only in Japan]

Model Throughput
(kg-DS/h)		 Dimensions(mm) Total Power

Consumption(kW)

 Weight(kg)
L W H Empty Operation
AW-131 ～4kg-DS/ｈ

（～2.0?/h）

 1757 700 1540 0.7 265 665
AW-132 ～8Kg-DS/h

（～4.0?/h）

 1757 900 1540 0.8 330 830
AW-133 ～12kg-DS/h

（6.0?/h）

 1847 1100 1540 0.9 400 1050
* The above processing amount is a guideline value. Please contact us for model selection as it depends on the sludge properties.

* The above processing amount is based on the moisture content of dehydrated cake of 85% or less.

* There is no upper limit to the sludge concentration, but it must be fluid.

?

Go to top
To inquiry form

Sludge Dewatering Press

ES-051

Raw Wastewater /
Waste Activated Sludge /
Chemically Precipitated Sludge		 Dissolved-air
Flotation Sludge
Sludge
Concentration
(TS)		 0.2% 1.0% 2.0%
ES-051 up to 0.5kg-DS/h
(up to 0.25m3/h)		 up to 1kg-DS/h
(up to 0.1m3/h)		 up to 2kg-DS/h
(up to 0.1m3/h)
Model Dimensions (mm) Total Power
Consumption (kW)		 Weight (kg)
L W H Empty Operation
ES-051 1095 749 1100 0.2 160 180

* Throughput above is calculated as approximate and may vary depending on sludge condition.

For model selection, please contact us.

* Throughput of each model is based on sludge cake with 20±5% solids content.

* There is no certain upper limitation on inlet sludge concentration, however, the target sludge must be flowable.

* Throughput of DAF Sludge is based on sludge containing much fat, oil, and grease such as meat processing applications etc.

Go to top
To inquiry form

Sludge Dewatering Press (offered only in Japan)

MW Series

[offered only in Japan]

model Throughput
(kg-DS/h)		 Dimensions(mm) Total Power

Consumption(kW)

 Weight(kg)
L W H Empty Operation Walkway
MW-351 100 5200 2000 2250 2.35 2100 3050 180
MW-352 200 5700 2500 2750 5.3 4100 6600 190
MW-353 300 5700 2750 2750 6.8 5100 7900 200
MW-354 400 5700 3200 2750 8.3 6600 9700 210
* The standard processing amount is the value for two-component tempering of inorganic flocculant and polymer
flocculant when the sludge concentration is about TS3.5%.
* Dehydrated cake moisture content is 71 ~ 73%. As it varies depending on the properties of the target sludge fiber, etc.
Please contact us for details.
* The above processing amount is a guideline. Please contact us when selecting a model as it depends on the sludge properties.

* Specifications are subject to change without notice.

* A separate general operation panel is included.

?

Go to top
To inquiry form

Sludge Dewatering Press (offered only in Japan)

MS Series

[ offered only in Japan ]

Model Throughput
(kg-DS/h)		 Dimensions (mm) Total Power
Consumption (kW)		 Weight (kg)
L W H Empty Operation
MS-201A 6 to 8 2650 1640 2320 1.915 930 2200
MS-202A 12 to 16 2650 1940 2320 2.115 1230 2700
MS-203A 18 to 24 2650 2240 2320 2.815 1530 3300
MS-204A 24 to 32 2750 2040 2320 3.665 2000 3500
MS-205A 30 to 40 2750 2340 2320 3.865 2300 4100
* Throughput is based on the standard value of the sludge concentration with TS 0.2% to 0.4%, and the water content of dewatered cake being 83% by adding Polyferric sulphate and ampholytic polymer.
* Throughput above is calculated as approximate and may vary depending on sludge condition. For model selection, please contact us.
Go to top
To inquiry form

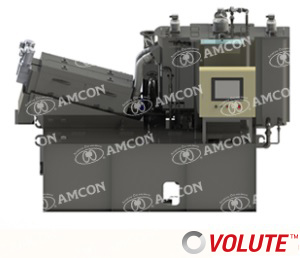

Sludge Dewatering Press (offered only in Japan)

DW Series

[offered only in Japan]

Model Throughput
(kg-DS/h)		 Dimensions(mm) Total Power

Consumption(kW)

 Weight(kg)
L W H Empty Operation
DW-201 10～14 3415 1930 2080 3.3 1800 3550
DW-202 20～28 3415 1930 2250 3.9 2000 4000
DW-203 30～42 4310 2300 2950 5.9 5100 11700
DW-204 40～56 4310 2300 2950 7.4 5300 12600
DW-205 50～70 4310 2300 2950 7.8 5500 13500
* Standard treatment amount is due to addition of polyiron and amphoteric polymer flocculant when the sludge concentration is TS0.2% or more.
Standard value when moisture content of dehydrated cake is 83%.

* The above processing amount is a guideline. Please contact us for model selection as it depends on the sludge properties.

* Specifications are subject to change without notice.

* A separate general operation panel is included.

?

Go to top
To inquiry form

Mobile Dewatering Truck (offered only in Japan)

MV Series

[ offered only in Japan ]

Model Throughput Base Vehicle Dimensions (mm) Total Power
Consumption (kW)		 Weight (kg)
L W H Empty Operation
MV-1 up to 20kg‐DS/h
(up to 2.0m3/h )		 4-ton truck

(Total vehicle weight less than 8-ton)

 7200 2280 3300 3.5 3800 4500
MV-2 up to 45kg‐DS/h
(up to 4.5m3/h )		 8-ton truck

(Total vehicle weight less than 11-ton)

 8885 2280 3300 7.92 6400 7700
MV-3 up to 90kg‐DS/h
(up to 9.0m3/h )		 8.67 6800 8500
【Standard Accessories】Sludge dewatering press, Polymer make-up system, Polyferric Sulfate dosing pump, Other pumps, Dewatered cake conveyor, Generator, Power cable and Hoses

* Throughput above is calculated as approximate and may vary depending on sludge condition.

For model selection, please contact us.

* Throughput of each model is based on sludge cake with 20±5% solids content.

*?Throughput is based on waste activated sludge and chemically precipitated sludge with TS 1.0%.

Go to top
To inquiry form

Sludge Thickener

VT Series

Model Capacity (Inflow)
(m3/h)		 Dimensions (mm) Total Power
Consumption (kW)		 Weight (kg)
L W H Empty Operation
VT-101 up to 1 1772 901 1250 0.3 160 290
VT-131 up to 3 1772 901 1250 0.3 170 300
VT-201 up to 10 2436 901 1737 1.15 360 680
VT-301 up to 30 3463 1320 2026 1.5 840 1650
VT-302 up to 60 4778 1685 2026 3 1500 4200
VT-303 up to 90 4978 1930 2026 4.45 1950 5550
* Capacity is based on waste activated sludge from biological treatment with TS 0.4% and thickening up to 4% with polymer.
*?Figures above?are calculated as approximate and may vary depending on sludge condition. For model selection, please contact us.
Go to top

Feel free to contact us for any inquiries
about sludge treatment and wastewater treatment.

Inquiries about Products, operation instructions, troubleshooting and repairs

  • Sludge Dewatering Press & Thickener
  • Sludge dryer & sludge dewatering and fermentation system
  • Water Treatment Chemicals
  • Other Products

Inquiry by Phone

+81-45-540-8580

Weekdays 9:00～17:00

top
Inquiries
TOP
